PERFORMANCE |
Processor |
| Intel® Core™ i7-12700, 12C (8P + 4E) / 20T, Max Turbo up to 4.9GHz, P-core 2.1 / 4.8GHz, E-core 1.6 / 3.6GHz, 25MB |
Graphics | Integrated Intel® UHD Graphics 770 |
Chipset | Intel® B660 Chipset |
Memory | 1x 8GB UDIMM DDR4-3200 |
Memory Slots | Two DDR4 UDIMM slots, dual-channel capable |
Max Memory |
| Up to 64GB DDR4-3200 |
Storage | 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
Storage Support |
| Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB |
Card Reader | 3-in-1 Card Reader |
Optical | DVD±RW |
Audio Chip | High Definition (HD) Audio, Realtek® ALC222-CG codec |
Speakers | 2Wx1 |
Power Supply | 260W 90% |
Keyboard | USB Calliope Keyboard, Black, Arabic |
Mouse | USB Calliope Mouse, Black |
Front Access HDD | None |
Optional Bay | None |
Expansion Slots | - One PCIe® 4.0 x16, full-height, half-length
- Two PCIe® 3.0 x1, full-height, half-length
- Two M.2 slots (one for WLAN, one for SSD)
|
Case Color | Chassis: Black, Bezel: Grey |
System Fan | None |
Stand | None |
Carry Handle | None |
Toolless Chassis Screw | None |
Dust Filter | None |

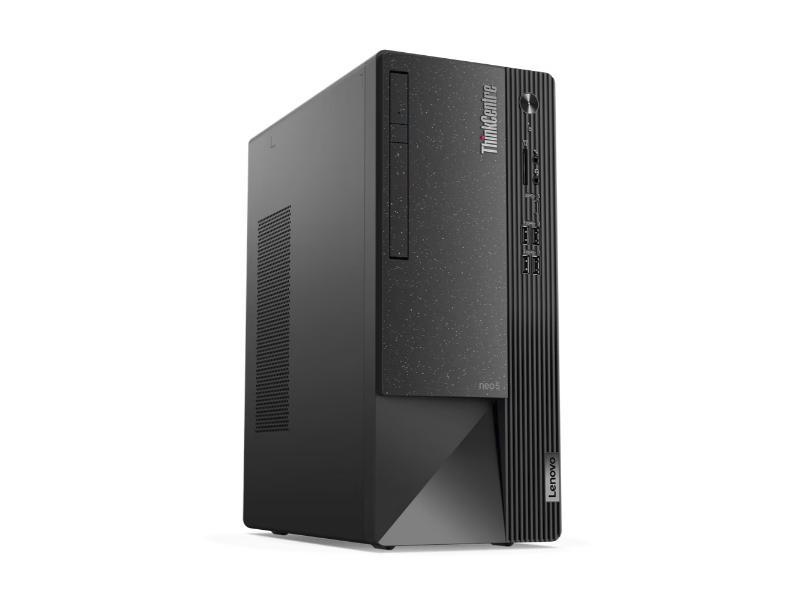

Form Factor | Tower (13.6L) |
Dimensions (WxDxH) |
| 145 x 294 x 340 mm (5.71 x 11.57 x 13.39 inches) |
Weight |
| Around 5.5 kg (12.1 lbs) |
CONNECTIVITY |
Ethernet | Intel® I219-V, 1x RJ45 |
WLAN + Bluetooth | None |
Front Ports | - 1x USB-C® 3.2 Gen 1 (support data transfer and 5V@3A charging)
- 2x USB 3.2 Gen 1
- 2x USB 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|
Optional Front Ports (configured) | 1x card reader |
Rear Ports | - 4x USB 2.0
- 1x HDMI® 1.4b
- 1x DisplayPort™ 1.4
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x headphone (3.5mm)
- 1x serial (9-pin)
|
Optional Rear Ports (configured) | 1x Parallel |
Monitor Cable | None |
SECURITY & PRIVACY |
Security Chip | Discrete TPM 2.0, TCG certified |
Fingerprint Reader | No fingerprint reader |
Physical Locks | - Kensington® Security Slot™, 3 x 7 mm
- Padlock Loop
|
Smart Cable Clip | None |
Chassis E-Lock | None |
Chassis Intrusion Switch | None |
